Product Description
Halotron Extinguishers are used for fighting class B (Flammable Liquids) and class C (Electrical) fires near electronic and data equipment. (*Halotron units over 11lbs are A, B, and C rated)
- Class B: Flammable Liquids and Gases such as gasoline, oil, paint, lacquer and tar.
- Class C: Fires involving live or energized electrical equipment (anything that is plugged in).
Halotron units weighing 1.4-5.5lbs are rated for B and C fires: Amerex A384T, Amerex B385TS, Amerex B386T
*Halotron units over 11lbs are rated for A, B, and C fires: Amerex 397, Amerex 398
Halotron I clean fire extinguishing agent discharges as a rapidly evaporating liquid, which is non-conductive, non-corrosive, and leaves behind no residue. Halotron I is the clean agent market leader with a history of successful real-world protection of valuable assets. From model scale aircraft to wide body commercial aircraft, from data centers to pharmaceutical and other industrial plants, the Halotron I agent has been used to extinguish the fire, limit damage and help reduce downtime that can be caused by other agents.
The Halotron I clean agent has been determined to be the most environmentally beneficial halocarbon agent on the market today that meets wide performance standards. The primary raw material in the agent is HCFC-123, which has an outstanding profile of near-zero ozone depleting potential (0.0098, CFC-11=1.0) and a low global warming potential (77, 100 yr. CO2 time horizon). State of the art atmospheric modeling completed in 2009 describes the smaller environmental footprint than HFC-based agents available for portable extinguishers.
Industrial Applications
- Data centers
- Computer rooms
- Server rooms
- Telecommunication facilities
- General office areas
- Manufacturing plants
- Laboratories
- Clean rooms
- Control rooms
- Warehouses
- Military electronics
- Vehicles (including classic autos)
- Engine compartments
- Aircraft ramps
- Boats
- Onboard aircraft and in facilities that service aircraft and any facility where dry chemical extinguishers could cause unacceptable damage or contamination.
Specifications
- Brand: Amerex

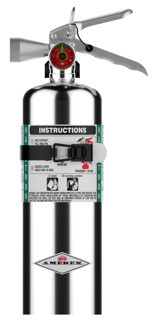

- Model #: Amerex B386T / 386T
- UL Rating: 5B:C
- Capacity: 5 lb
- Shipping Weight: 9.5 lb
- Height: 15.25 in
- Width: 5.75 in (entire width of unit, including hose and handle)
- Depth: 4.25 in (cylinder diameter)
- Range (initial): 9-15 ft
- Discharge time: 9 sec
- Minimum Space Requirement (Cu. Ft.): 700
- Bracket Included: 818 Vehicle Bracket
- Manufactured Year: 2026
Rugged
- 6 Year Manufacturer's Warranty
- Stored Pressure Design
- Dependable Drawn Steel Cylinders
- Durable High Gloss Polyester Powder Paint
- All Metal Valve Construction
- Temperature Range -40°F to 120°F
Environment
- EPA approved "Clean Agent"™ for Class A, B and C hazards
- Low GWP (Global Warming Potential)
- Low ODP (Ozone Depletion Potential)
- Short Atmospheric Lifetime
Clean
- Leaves No Residue
User Friendly
- Maximum Visibility During Discharge
- Large Loop Pull Pin
- No Electrical Conductivity Back to the Operator
- No Thermal or Static Shock
- Bar Coded and Bi-lingual Labels
US COAST GUARD APPROVAL
- USCG Approved with bracket 818 Vehicle Bracket (included), 821 Vehicle Bracket, 861H Vehicle Bracket
Options
- Optional Chrome Plated Cylinder (B386TC / 386TC) = additional $195.00
Metal Cabinets - (Steel, Aluminum and Stainless Steel)
- JL Industries 1000 Series Metal Cabinets (700+ Configurations Available):
2.5 lb, 5 lb, and 10 lb Metal Cabinets
Plastic Cabinets
- Plastic Cabinets - Select 21 Inch Size for this extinguisher. Available in red or white cabinet, with red or clear covers.
Semi Recessed Metal Cabinets
- Steel Semi Recessed Cabinet - 1017G10
- Aluminum Semi Recessed Cabinet - 1027G10
- Stainless Steel Semi Recessed Cabinet - 1037G10
Surface Mounted Metal Cabinets
- Potter Roemer Metal 5 lb Cabinet - 9751
- Steel Surface Mounted Cabinet - 1013G10
- Stainless Steel Surface Mounted Cabinet - 1033G10
Custom JL Industries 1000 Series Metal Cabinets
Wheeled Fire Extinguisher Option
Manufactured and Tested to UL Standards:
COMPLIES WITH NFPA 10 STANDARD
ISO-9001/ISO-14001 CERTIFIED UL LISTED
CONFORMS TO TEST STANDARDS:
CAN/ULC-S566 - ANSI/UL2129 &
CAN/ULC-S508 - ANSI/UL711
