Product Description

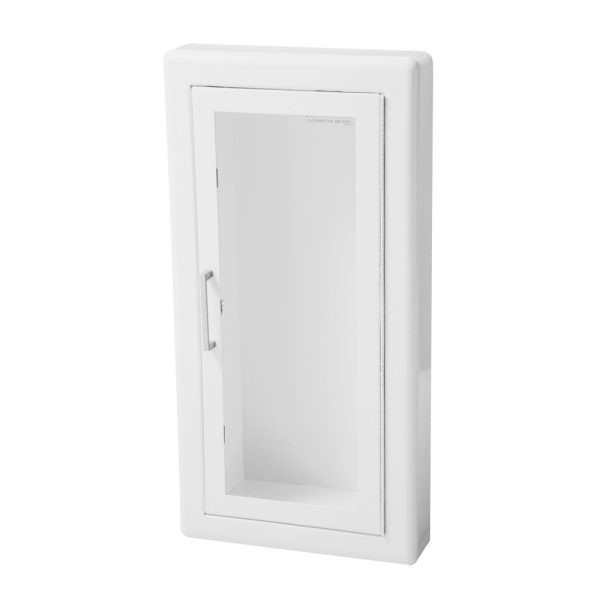

JL Industries 1000 Cabinet Series
JL Industries 1000 Series Cabinets Fit Most 2.5, 5, and 10 lb Fire Extinguishers. (Max Extinguisher Height: 24 inches, Max Cylinder Depth: 6 inches)
Accommodates Amerex Models: 347TS, 349TS, B385TS, B386T, B394TS, B369, B371, C352TS, C354TS, B355T, 322, 322NM, B417, B417T, B500, B500T, B500C, B500TC, B402, B402T, B402C, B402TC, B443, B456, B424, B451, B441, B410T, B479, B479T, B460
- Interior Tub Dimensions (for all 1000 models except Surface Mount): 24" x 6" x 10.5"
- Surface Mount Interior Tub Dimensions: 27 3/16" x 13 11/16" x 6.5"
Click here for Specifications Sheet
Ambassador Architectural Series – Steel Fire Extinguisher Cabinet
Our most popular and specified painted steel fire extinguisher cabinet with ten door styles for recessed, semi recessed or surface-mounted installation. Available in the FX2 fire-rated version for up to two hour walls.
Door and Trim Construction: Cold rolled steel with white powder-coat finish standard. Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
Trim Style and Depth: Trimless Recessed - for 5/8” depth drywall or 3/4” plaster. Recessed - 3/8” flat trim. Semi-Recessed - 1 1/4", 1 1/2" Square Edge or 2 1/2", 3", 4" (recessed pull), 4 1/2" Rolled Edge. Surface-mount has a square edge or optional rolled edge upon request. 1 3/4" face trim on frame and 1 1/4" trim on doors with glazing.
Tub: Constructed of cold rolled steel with white powder-coat finish standard. Options at Additional Cost: Color door and trim or tub. Rolled Edge Surface Mount Cabinet. Custom colors. See page 24.
Fire-Rated Option Available: Yes
Academy Architectural Series – Aluminum Fire Extinguisher Cabinet
Academy is the industry standard for durable, aluminum fire extinguisher cabinets. Combine one of our ten door styles and seven trim selections for a unique look.
Door and Trim Construction: Clear anodized aluminum. Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
Trim Style and Depth: Trimless Recessed - for 5/8” depth drywall or 3/4” plaster. Recessed - 3/8” flat trim. Semi-Recessed - 1 1/4", 1 1/2" Square Edge or 2 1/2", 3", 4" (recessed pull), 4 1/2" Rolled Edge. Surface-mount has a square edge. 1 3/4" face trim on frame and 1 1/4" trim on doors with glazing. Rolled edge models are constructed of mechanically-joined extrusions, except for models 1827 and 1027 which are die formed. Die formed corners provide an attractive, rounded edge - unique to the JL line of cabinets!
Tub: Constructed of cold rolled steel with white powder-coat finish standard. Surface-mounted models have clear anodized aluminum tubs.
Options at Additional Cost: Light, medium or dark bronze anodized finish. See page 24. Aluminum tub for non-rated use (#180 clear anodized).
Fire-Rated Option Available: Yes
Cosmopolitan Architectural Series – Stainless Steel Fire Extinguisher Cabinet
Select one of the seven trim styles of this sleek stainless steel finish fire extinguisher cabinet. Match the Cosmopolitan cabinet to other stainless building components for a unified décor.
Door and Trim Construction: No. 4 Stainless Steel Trim and Door. Flush cabinet doors with a 5/8" door stop are attached by a continuous hinge and equipped with zinc-plated handle and roller catch.
Trim Style and Depth: Trimless Recessed - for 5/8” depth drywall or 3/4” plaster. Recessed - 3/8” flat trim. Semi-Recessed - 1 1/4", 1 1/2" Square Edge or 2 1/2", 3", 4" (recessed pull), 4 1/2" Rolled Edge. Surface-mount has a square edge or optional rolled edge upon request. 1 3/4" face trim on frame and 1 1/4" trim on doors with glazing.
Tub: Constructed of cold rolled steel with white powder-coat finish standard. Surface-mounted models have No 4 stainless tubs.
Options at Additional Cost: Custom stainless finishes - #6 satin, #7 polished, #8 mirror. Stainless tub with #4 finish. Rolled Edge Surface Mount Cabinet.
Fire-Rated Option Available: Yes
Architectural Submittals
| C1013F10 | Surface Mount, Full Glazed Door | |
| C1013G10 | Surface Mount, Full Glazed Door, Saf-t-lok | |
| C1013S21 | Surface Mount, Solid Door | |
| C1013V10 | Surface Mount, Vertical Duo Door | |
| C1015F10 | 3/8" Trim, Full Glazed Door | |
| C1015F10FX2 | 3/8" Trim, Full Glazed Door, Fire-rated | |
| C1015V10 | 3/8" Trim, Vertical Duo Door | |
| C1015V10FX2 | 3/8" Trim, Vertical Duo Door, Fire-rated | |
| C1016F10 | 1-1/2" Square Trim, Full Glazed Door | |
| C1016F10FX2 | 1-1/2" Square Trim, Full Glazed Door, Fire-rated | |
| C1016V10 | 1-1/2" Square Trim, Vertical Duo Door | |
| C1016W17FX2 | 1-1/2" Square Trim, Vertical Duo Door-Tempered, Saf-t-lok, Fire-rated | |

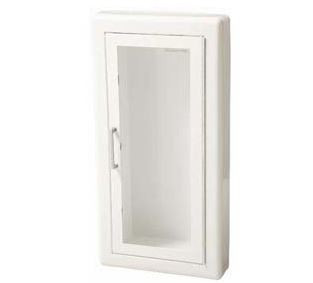

| C1017F10 | 3" Rolled Trim, Full Glazed Door | |
| C1017F10FX2 | 3" Rolled Trim, Full Glazed Door, Fire-rated | |
| C1017F17 | 3" Rolled Trim, Full Glazed Door- Tempered | |
| C1017F17FX2 | 3" Rolled Trim, Full Glazed Door - Tempered, Fire-rated | |
| C1017G10 | 3" Rolled Trim, Full Glazed Door, Saf-t-lok | |
| C1017G10FX2 | 3" Rolled Trim, Full Glazed Door, Saf-T-lok, Fire-rated | |
| C1017S21 | 3" Rolled Trim, Solid Door | |
| C1017V10 | 3" Rolled Trim, Vertical Duo Door | |
| C1017V10FX2 | 3" Rolled Trim, Vertical Duo Door, Fire-rated | |
| C1017V17FX2 | 3" Rolled Trim, Vertical Duo Door - Tempered, Fire-rated | |
| C1017W10 | 3" Rolled Trim, Full Glazed Door, Saf-t-lok | |
| C1017W10FX2 | 3" Rolled Trim, Full Glazed Door, Saf-t-lok, Fire-rated | |
| C1017W17FX2 | 3" Rolled Trim, Vertical Duo Door - Tempered, Saf-t-lok, Fire-rated | |
| C1816F10 | 1-1/2" Square Trim, Full Glazed Door | |
| C1816G10 | 1-1/2" Square Trim, Full Glazed Door, Saf-t-lok | |
| C1816G10FX2 | 1-1/2" Square Trim, Full Glazed Door, Saf-t-lok, Fire-rated | |
| C1026L24 | 1-1/2" Square Trim, Solid Door with Cylinder Lock, No Handle | |
| C1027F10 | 3" Rolled Trim, Full Glazed Door | |
| C1027F10FX2 | 3" Rolled Trim, Full Glazed Door, Fire-rated | |
| C1027V10 | 3" Rolled Trim, Vertical Duo Door | |
| C1027V10FX2 | 3" Rolled Trim, Vertical Duo Door, Fire-rated | |
| C1027W17 | 3" Rolled Trim, Vertical Duo Door- Tempered | |
| C1033F10 | Surface Mount, Square Trim, Full Glazed Door | |
| C1033F17 | Surface Mount, Square Trim - Tempered, Full Glazed Door | |
| C1033V10 | Surface Mount, Square Trim, Vertical Duo Door | |
| C1033W17 | Surface Mount, Square Trim, Vertical Duo Door - Tempered, Saf-t-lok | |
| C1035V10 | Flat 3/8" Trim, Vertical Duo Door | |
| C1037F10 | 3" Rolled Trim, Full Glazed Door | |
| C1037F10FX2 | 3" Rolled Trim, Full Glazed Door, Fire-rated | |
| C1037F17 | 3" Rolled Trim, Full Glazed Door - Tempered | |
| C1037G10 | 3" Rolled Trim, Full Glazed Door,, Saf-t-lok | |
| C1037L22 | 3" Rolled Trim, Solid Door with Saf-t-lok | |
| C1037S21 | 3" Rolled Trim, Solid door with Cylinder Lok | |
| C1037V10 | 3" Rolled Trim, Vertical Duo Door | |
| C1037V10FX2 | 3" Rolled Trim, Vertical Duo Door, Fire-rated | |
| C1037V17 | 3" Rolled Trim, Vertical Duo Door - Tempered | |
| C1037W10 | 3" Rolled Trim, Vertical Duo Door, Saf-t-lok | |
| C1037W17 | 3" Rolled Trim, Vertical Duo Door - Tempered, Saf-t-lok | |
| C2033F10 | Surface Mount, Square Trim, Full Glazed Door |
Additional Options Available. For a custom quote, please email us at Sales@FireExtinguisherDepot.com
